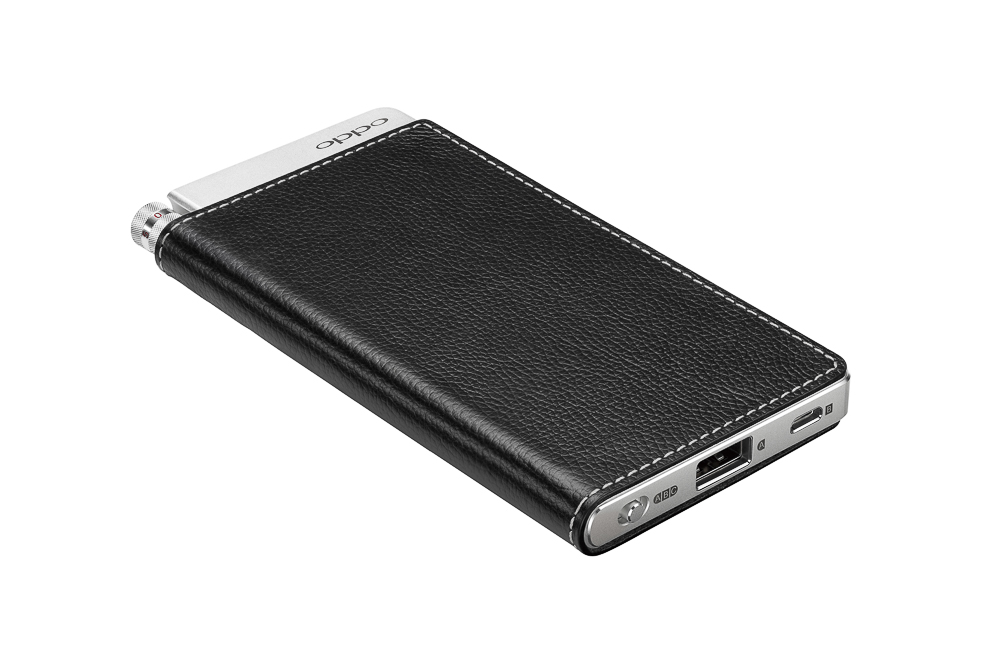

We have seen the outlines of Oppo HA-2 and a new less expensive headphone model navnt PM-3 already ahead of the Horten HiFI Fair last autumn. But we didn`t succeeded in our to pry some details out of Oppo's representative at the Horten Fair, so we have been obliged to hold back an article until there is official data. Now HA-2 is released, and it is revealed that this seems to be a rather exclusively designed pocket-DAC with headphone amplifier, in a surprisingly moderate price range.
An exclusive design combined with very lusty specifications, not to mention a moderate price and Oppo`s general reputation for high quality, gives every reason to expect that Oppo HA-2 is a highly sought after product. We start with the DA-converter, which is able to translate PCM with resolution until 32bit / 384kHz or DSD256. It is an ESS SABRE32. Moreover, it is able to connect to all your iOS devices, and mobile devices with USB OTG, in addition to PC and MAC.
Oppo HA-2 has a quick charger, which provides a full charge in 30 minutes. In addition, it can be used as charger for mobile devices.

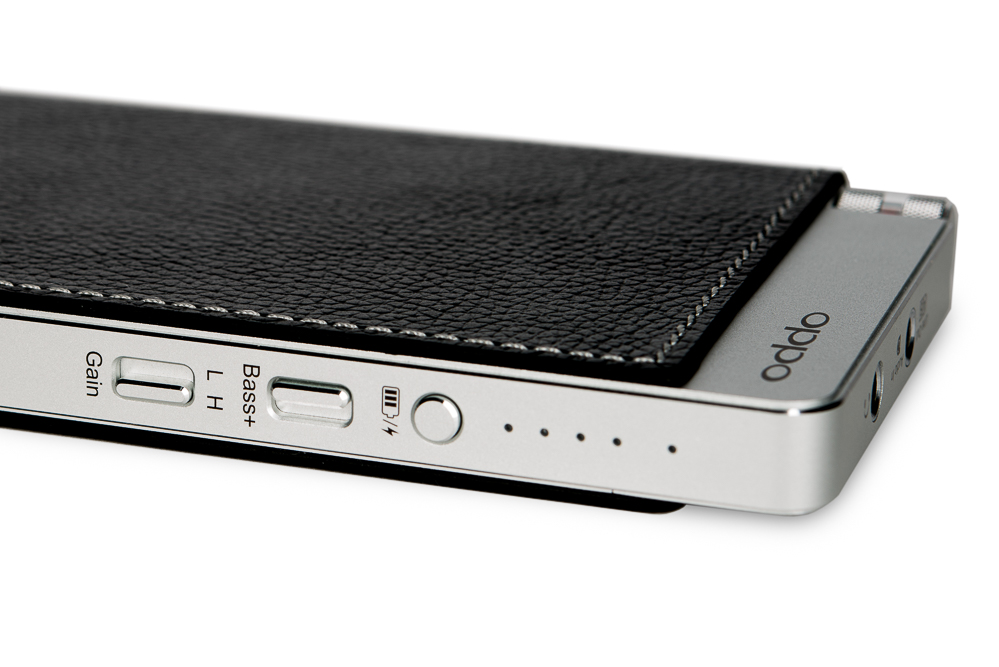

Headphone amplifier operating in Class A / B, and has a smart solution for shielding volume control for pocket use. HA-2 also has an analog input, which enables the use of external sources. There are also two different gain settings for optimal adaption to different headphones.
Manufacturer Specifications:
Specifications
Designs and Specifications are subject two change without notice.
|
General |
|
|
Dimensions (W x H x D) |
2.5 x 6.2 x 0.5 inches, 68 x 157 x 12 mm |
|
Weight |
6.2 oz, 175 gram |
|
Frequency Response |
20 Hz - 200 kHz |
|
Audio-in Level |
1 Vrms |
|
Lineout Level |
1 Vrms @ 0 dBFS |
|
Recommended Headphone Impedance |
16 Ohm - 300 Ohm |
|
Maximum Headphone Output Power |
300mW into 16 Ohm |
|
Output Jacks |
3.5 mm stereo headphone |
|
Input Ports |
Analog: 3.5 mm stereo audio-in |
|
DAC Chip |
ESS Sabre 32 Reference ES9018-K2M |
|
Input Format |
Stereo PCM Stereo DSD (DoP v1.1 or native) |
|
PCM Sampling Frequencies |
44.1 kHz - 384 kHz 16/24/32-bit |
|
DSD Sampling Frequencies |
2.8224 MHz (DSD64), 5.6448 MHz (DSD128), 11.2896 MHz (DSD256, native mode only) |
|
Profile |
USB 2.0, USB Audio 2.0 |
|
Battery |
|
|
Built-in Battery type |
3000 mAh lithium polymer rechargeable battery |
|
Battery Operation Time |
Approx. 13 hours for analog source via Audio-in; approx. 7 hours of digital sources via USB |
|
Charging Time |
Approx. 1 hour 30 minutes |
Nobleman is a distributor in Norway.
