mandag, 27 april 2015 19:34

TX-SR343 og TX-NR545. Nye budsjettreceivere fra Onkyo flytter grenser for Dolby Atmos.

Skrevet av



Vårslippet med AV-receivere har kommet til Onkyo. Det er i første omgang de to minste modellene TX-SR343 og TX-NR545 som blir avduket. Og ifølge Onkyo har samarbeidet med Pioneer gitt resultater i form av to svært konkurransedyktige AV-receivere i budsjettklassen.







TX-SR343

Den mest synlige forskjellen finner vi på den aller minste modellen. Onkyo TX-SR343har fått en enkel og harmonisk frontplate, og har en linjeføring som kan gi assosiasjoner til Onkyo sin nye halvsøster – Pioneer. Onkyo har også lagt vekt på at TX-SR343 skal være enkel å betjene – et inteklligent valg gitt at dette er en modell som ikke først og fremst appellerer til den avanserte hardcore AV-entusiasten. De har redesignet bakplaten med fokus på oversiktlighet.



TX-SR343 bærer preg av å være minstemann i familien, og mangler den store mengden av nettverks- og WiFi-relatert utstyr som de større modellene flommer over av. Men den har Blåtann. Det er også mulig å utvide til WiFI ved hjelp av en USB-dongle.

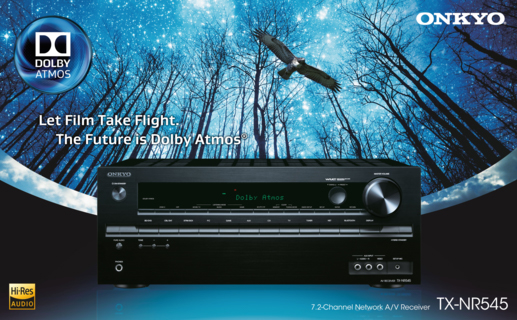

TX-NR545

Går vi derimot over til den større modellen OnkyoTX-NR545, er det en bokstavelig talt grensesprengende utstyrsliste i forhold til prisklassen.



Det har skjedd mye med TX-NR545 over forgjengeren TX-NR535. Det viktigste fundamentet ligger i at den har vokst fra å være en 5.1 til en 7.1-receiver. Og dette har gitt muligheten for Dolby Atmos i minimumskonfigurasjonen 5.1.2, noe Onkyo har benyttet anledningen til å implementere. Dermed overgår Onkyo sin egen verdensrekord i budsjett-Atmos. Og så gjenstår det å se om den vil slå den kommende halvsøsteren VSX-930, som vi skrev om for et par uker siden og som også blir en Atmos prisbombe.

Men det er ikke bare 7-kanals forsterkeri og Dolby Atmos som er nytt på TX-NR545. En fra før rikholdig utstyrsliste innen nettverk og WiFI er nå komplettert med AirPlay, en nyhet for Onkyo uansett plass i hierarkiet.





Spesifikasjoner fra Onkyo:






Features TX-SR343



HIGHLIGHTS

100 W per Channel
HDMI 4 In / 1 Out (4K UltraHD / HDMI 2.0a / HDCP 2.2)
True Driving Power from Discrete Amp Circuits
Bluetooth Wireless Audio Streaming
Easy Configuration Rear Panel
HDMI Video Up-Conversion
Streaming Media Player Ready



ADVANCED FEATURES

4K/60 Hz-Capable HDMI® 2.0a Terminals for UltraHD Entertainment
Bluetooth Version 2.1 + EDR Capability (Compatible Profile: A2DP v1.2, AVRCP v1.3)
Analog Video Upconversion to HDMI
Advanced Music Optimizer to Improve Compressed Digital Audio Quality (Bluetooth Audio Included)
Phase-Matching Bass Boost for Deep Bass and Clear Mid-Range



AMPLIFIER FEATURES

100 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC); 120 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, JEITA)
WRAT (Wide Range Amplifier Technology)
H.C.P.S. (High Current Power Supply) Massive High Power Transformer
Discrete Output Stage Circuitry
PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio



PROCESSING FEATURES

HDMI 2.0a Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
Dolby® TrueHD and DTS-HD Master Audio™ Decoding
TI Burr-Brown 192 kHz/24-bit DAC for All Channels
Advanced 32-bit DSP Chip
4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
Theater-Dimensional Virtual Surround Function
CinemaFILTER™
Direct Mode
Double Bass Function
Non-Scaling Configuration
A-Form Listening Mode Memory



CONNECTION FEATURES

4 HDMI Inputs and 1 Output
USB Port (Rear) for Powering Media Streaming Sticks (5 V, 1 A)
2 Component Video Inputs (Rear)
3 Composite Video Inputs (1 Front/2 Rear)
3 Digital Audio Inputs (2 Optical and 1 Coaxial)
7 Analog Audio Inputs (1 Front/6 Rear)
Subwoofer Pre-Out
Headphone Jack



OTHER FEATURES

Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/200 Hz)
A/V Sync Control (Up to 500 ms in 10 ms Steps at 48 kHz)
Overlaid On-Screen Display (OSD) via HDMI with Quick Set-Up
HDMI Passthrough Function
Tone Control (Bass/Treble) for Front L/R Channels
3-Mode Display Dimmer (Normal/Dim/Dimmer)
40 FM/AM Random Presets
RIHD (Remote Interactive Over HDMI) for System Control
Full-Function RI (Remote Interactive) Remote Control







Features TX-NR545



HIGHLIGHTS

Supports Dolby Atmos up to 5.1.2 Channels
120 W per Channel
HDMI 6 In / 1 Out (4K UltraHD / HDMI 2.0a / HDCP 2.2)
True Driving Power from Discrete Amp Circuits
Bluetooth Audio / Wi-Fi with Spotify and AirPlay
DSD 5.6 MHz, FLAC 192 kHz/24-bit Hi-Res Audio Capable
384 kHz/32-bit Hi-Grade DAC
AccuEQ Room Acoustic Calibration



ADVANCED FEATURES

4K/60 Hz-Capable HDMI® 2.0a Terminals for Ultra HD Entertainment
Built-in Wi-Fi® Certified Wireless LAN Capability
Bluetooth Version 2.1 + EDR Capability (Compatible Profile: A2DP v1.2, AVRCP v1.3) with Advanced Music Optimizer DSP Technology
Internet Radio and Music Streaming Subscription Services Included (TuneIn Radio, Spotify, and Deezer)*1
Playback Compressed, Lossless, and Hi-Res Audio via Local Network (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, Apple Lossless, DSD 5.6 MHz, LPCM*2)
Proprietary AccuEQ Room Calibration with Mic Included
Advanced Music Optimizer to Improve Compressed Digital Audio Quality (Bluetooth Audio Included)
Control and Stream with Free Onkyo Remote Streaming Apps for iPod touch/iPhone*3 and Android™ Devices*4
Phase-Matching Bass Boost for Deep Bass and Clear Mid-Range
Zone 2 Line-Out for Distributed Audio Playback in Another Room

*1 Availability of services depends on region. Some services may require a paid subscription and firmware update. Availability of third-party services advertised here is accurate at the time of publication, but may be subject to change without notice. *2 LPCM is supported via DLNA only. *3 Compatible with iPod touch (3rd generation or later) and iPhone 3GS or later. All models require iOS 4.2 or later. *4 Requires Android 2.1 or later.



AMPLIFIER FEATURES

120 W/Ch (6 Ω 1 kHz, 1% THD, 1 Channel Driven, IEC); 120 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, JEITA)
WRAT (Wide Range Amplifier Technology)
H.C.P.S. (High Current Power Supply) Massive High Power Transformer
Discrete Output Stage Circuitry
Optimum Gain Volume Circuitry
PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio



PROCESSING FEATURES

Dolby Atmos® Decoding
HDMI® 2.0a Support for 4K/60 Hz, 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby Atmos®, Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
Dolby® TrueHD and DTS-HD Master Audio™ Decoding
AK4458 384 kHz/32-bit DAC (8 Channels x 1)
Advanced 32-bit DSP Chip
4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
Theater-Dimensional Virtual Surround Function
CinemaFILTER™
Direct Mode
Double Bass Function
Non-Scaling Configuration
A-Form Listening Mode Memory



CONNECTION FEATURES

6 HDMI Inputs and 1 Output
USB Port
Mass Storage Class USB Memory Playback Capability
2 Component Video Inputs (Rear)
4 Composite Video Inputs (1 Front/3 Rear)
3 Digital Audio Inputs (2 Optical and 1 Coaxial)
8 Analog Audio Inputs (1 Front/7 Rear)
2 Parallel Subwoofer Pre-Outs
Banana Plug-Compatible Speaker Posts
Headphone Jack



OTHER FEATURES

Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/200 Hz)
A/V Sync Control (Up to 500 ms in 10 ms Steps at 48 kHz)
Overlaid On-Screen Display (OSD) via HDMI with Quick Set-Up
Hybrid Standby Function with HDMI Passthrough to Reduce Power Consumption
Smart Grid-Ready
Tone Control (Bass/Treble) for Front L/R Channels
3-Mode Display Dimmer (Normal/Dim/Dimmer)
40 FM/AM Random Presets
Certified with DLNA Version 1.5
Firmware Updates via Ethernet and USB
RIHD (Remote Interactive Over HDMI) for System Control
Compatible with RI Dock for iPod/iPhone and AirPlay (DS-A5)
Preprogrammed RI (Remote Interactive) Remote Control





Begge modellene skal være tilgjengelig i mai 2015.



Onkyo importeres til Norge av Mono AS

Les mer om TX-SR343 hos Onkyo

Les mer om TX-NR545 hos Onkyo
