I tillegg til sin serie med fullskala HiFi har TEAC en kompakt Reference Serie med hardcore retro design. Det vil si – det er egentlig fire serier med benevnelsene hhv 101/301/501/503 Reference series.
I toppserien 503 Reference series finner vi fra før modellene NT-503 og NT-503DAB. Og jeg har ikke tenkt å si bort hvilken av disse to som gir en innebygget DAB-radio på kjøpet. Begge modellene er USB-DAC og streamere. I tillegg har vi modellen DU-503, som leverer hodetelefonforsterker i tillegg til DACen.

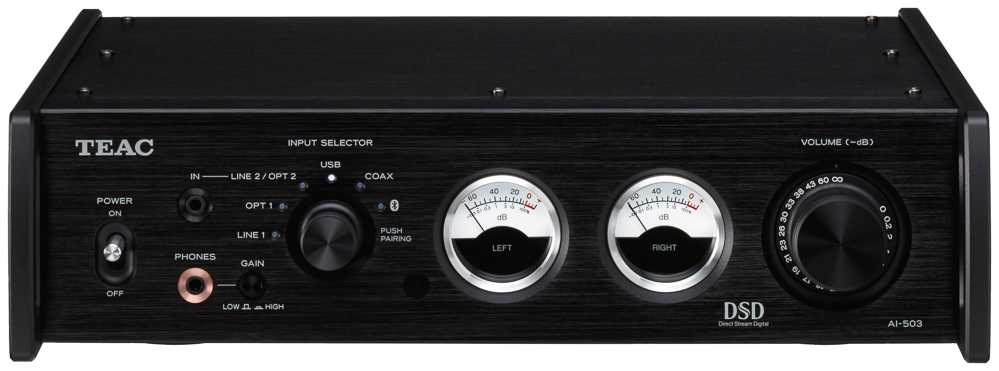

Med AI-503 er serien komplett med integrert forsterker. Her finner vi en klasse-D forsterker levert av ICEpower, som yter 2x22 watt i 8 ohm. USB-DACen har en Dual-mono konfigurasjon, og støtter PCM opp til 32 bit / 384 kHz, og DSD opp til 11.2 MHz.
Produsenten sine spesifikasjoner for AI-503
- DAC with a dual-mono configuration that supports resolutions up to 11.2MHz DSD and 384kHz/32bit PCM
- Separate VERITA AK4490 D/A converters made by Asahi Kasei Microdevices Corporation used on left and right channels
- Bluetooth® receiver that supports LDAC/Qualcomm® aptXTM (as well as AAC and SBC)
- Filter type can be switched, choosing from 2 DSD digital filters, as well as 4 PCM filters and off mode
- Two built-in high-precision dedicated clocks for 44.1kHz and 48kHz signals and their multiples (enabled during USB asynchronous transmission)
- TEAC-QVCS high-precision volume control circuit with fully-balanced structure
- High-output Class-D power amplifier (made by ICEpower a/s)
- Headphone amp with discrete, push-pull circuit and a maximum output of 280mW+280mW (TEAC-HCLD circuit)
- Ground connection supported by 3.5mm 4-pole stereo headphone jack (combined with regular 3.5mm stereo mini type)
- High-capacity toroidal-core power transformers

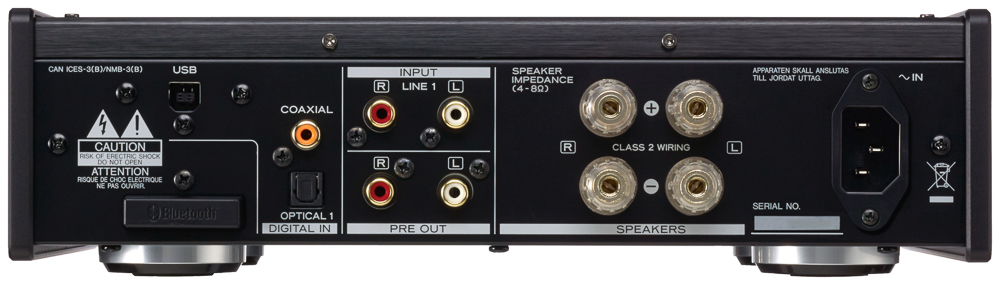

- Pair of RCA analog input jacks
- Volume-controlled pair of RCA analog output (pre-out) jacks
- USB/coaxial/optical digital inputs (one each on back panel)
- Combined round optical digital/3.5mm stereo mini jack (on front panel)
- Dual analog level meters with adjustable brightness
- Low-energy consumption design and automatic power-saving function
- All-metal enclosure provides both vibration resistance and a stylish appearance in an A4-page-sized footprint that can fit on a desk
- Dedicated remote control included
- IEC inlet
- Compliant with RoHS
Les mer om AI-503 hos TEAC.
TEAC importeres til Norge av Njål Hansson
